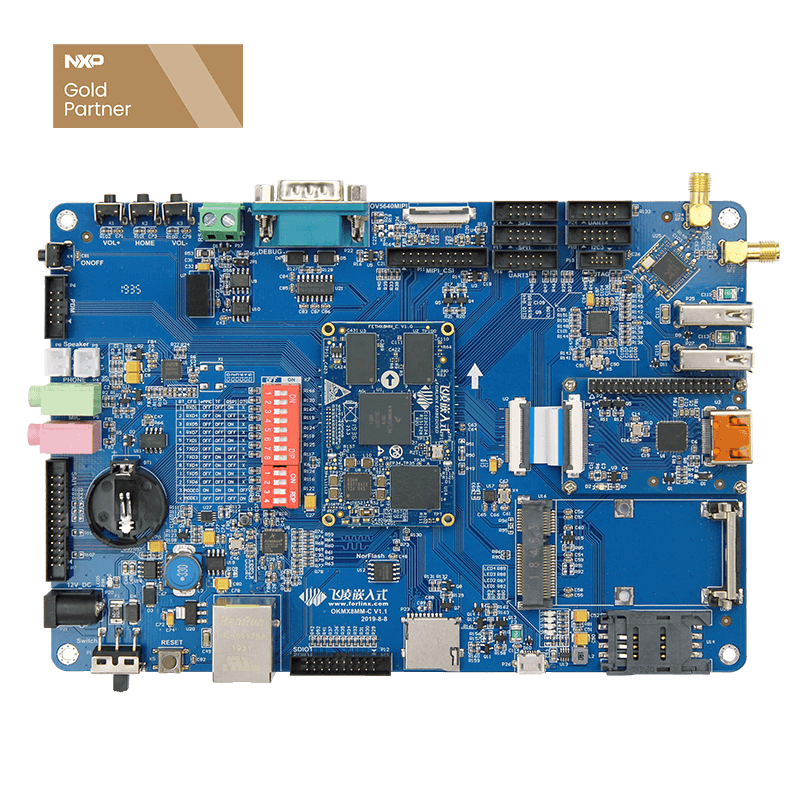

Máy tính nhúng OKMX8MM-C Single Board Computer SBC dựa trên IMX8M Mini Forlinx
4.995.000₫
Còn: 1 sản phẩm
| Số lượng | Giá |
|---|---|
| 11 - 19 | 4.870.125₫ |
| 20 - 49 | 4.770.225₫ |
| 50 - 99 | 4.720.275₫ |
| 100 - 1000 | 4.695.300₫ |
| 1001 - 10000 | 4.495.500₫ |
Datasheet
Datasheet
Mã sản phẩm: SP25083002
OKMX8MM-C Single Board Computer Based on NXP i.MX8M Mini
Product series: 8MM
Configuration: 2GB+8GB
OKMX8MM-C single board computer (SBC) based on NXP processor i.MX8M Mini, is powered by a compact design of 56mm x 36mm. The processor features a quad-core ARM Cortex-A53 up to 1.8GHz plus a 400MHz Cortex-M4 processor for higher speeds and energy efficiency. The tiny motherboard gives full play to the processor’s capabilities, with 2GB DDR4, 8GB eMMC. It offers a wide range of peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB, PCIe, UART, eCSPI, IIC and Gigabit Ethernet, and is widely used in medical inspection, machine vision inspection and management, machine learning and automotive multimedia, etc.
Main feature of OKMX8MM-C SBC:
- Up to 2GB LPDDR4 and 8GB eMMC;
- A wide range of audio interfaces are available, including I2S, AC97, TDM, PDM and SPDIF;
- High-performance, low-power, flexible memory;
- Mini-PCIe, 10/100/1000 Ethernet port, 2x USB, RS485.
Superior Performance Cool Experience
Based on NXP ARM Cortex-A53 quad-core processor iMX8M Mini@ 1.8GHz,
with 2GB DDR4, high performance and powerful hashrate make system running more smoothly
H.265, VP9 Decoder
Reduce band width occupancy rate VP9 and H.265 decoder can support 1080P@ 60Hz,
which is 50% more efficient, but bandwidth and capacity only 50% of H.264.
Android 9.0, Linux 4.14
SoM FETMX8MM-C can support Android9.0 and Linux4.14
64-bit systems, which can take users higher security and better human-machine interactive experience.
Multiple Audio Interfaces Delivery
A wide range of audio interfaces including I2S, AC97, TDM and S/PDIF five SAI channels.Can support FLAC7.1,
sound channel output and ring audion input, which is applicablefor hi-fi music system and voice recognition system.
Low-power Mode and Real-time Tasks Processing
FETMX8MM-C contains a Cortex-M4 core with frequency of 400MHz
and can communicate with Cortex-A53 by AHB, which can be used for lower-power sleeping mode and real-time tasks processing.
15 Years of Product Longevity Program
i.MX8M Mini processor’s life time is more than 10 years, which ensures users of stability of product supplying.
▊ iMX8M Mini SoM & SBC Video
Four Video Hard Decoding Demo Based on OKMX8MM-C SBC
▊ Hardware Features
| FETMX8MM-C SoM Overview | |
|---|---|
| CPU | NXP iMX8M Mini |
| Architecture | Quad-core Cortex-A53, single-core Cortex-M4 |
| Main Frequency | ≤1.8GHz |
| RAM | 2GB DDR4 |
| ROM | 8GB eMMC |
| OS | Linux4.14.78, Android9.0 |
| Voltage Input | DC 5V |
| Package | ultra thin board to board connector(3*80pin pitch of 0.5mm) |
| Working Temp | 0℃~70℃, -40℃~80℃ |
| Dimensions | 56mm×36mm |
| FETMX8MM-C SoM Features | ||
|---|---|---|
| Peripherals | QTY | Spec. |
| CAMERA | 1 | 4-lane, up to 1.5Gbps |
| SD/SDIO | ≤2 | 1.8V and 3.3V modes |
| USB | 2 | USB2.0 (up to 480Mbps), can be configured to OTG |
| SAI | ≤5 | |
| UART | ≤4 | each can support up to 4.0Mbps |
| eCSPI | ≤3 | up to 52Mbit/s, can be configured to host/ slave mode |
| IIC | ≤4 | 320Kbps |
| Ethernet | ≤1 | 10/100/1000Mbps auto-negotiation |
| PWM | ≤4 | 16-bit |
| JTAG | supported | |
| FlexSPI | 1 | single pad/ dual pad/ quad pad mode |
| Display | 1 | 4-lane MIPI, up to 1.5Gbps |
| PDM | ≤1 | up to 4-lane 8 channels |
| PCIe | 1 | PCIe 2.0 |
| OKMX8MM-C Carrier Board Features | |||
|---|---|---|---|
| Peripherals | QTY | Spec. | |
| MIPI_DSI | 1 | 4 data lanes, V1.01r11, resoltuion up to WQHD(1920x 1080P@60FPS, 24bpp) | |
| MIPI_CSI | 1 | 4 lanes; OV5640MIPI | |
| Audio | 1 | 1*MIC, 1*Phone, 2*Speaker | |
| PDM | 1 | a 10-pin header with pitch of 2mm | |
| SAI | 1 | by a 26-pin header with pitch of 2mm | |
| USB Host | 2 | expanded by hub, USB2.0(up to 480Mbps) | |
| USB OTG | 1 | standard micro-USB connector, USB2.0 (up to 480Mbps) | |
| Ethernet | 1 | 10/100/1000Mbps auto-negotiation, RJ-45 | |
| Mini PCIe | 1 | can support 4G wireless module, support PCIe2.0 single channel | |
| WiFi | 1 | Model: F23BUUM13-W2 WiFi standard: IEEE 802.11b/g/n, 2.4GHz Bluetooth: V2.1+EDR/BT v3.0/BT v4.0 |
|
| Bluetooth | 1 | ||
| TF Card | 1 | Compatible SD, SDHC and SDXC(UHS-1) | |
| SDIO | 1 | a 20-pin header with pitch of 2mm, 8-bit | |
| SPI | 2 | a 10-pin header with pitch of 2mm | |
| QSPI | 1 | on-board 16MB QSPI NOR FLASH | |
| PWM | 1 | for display backlight | |
| IIC | 4 | standard mode 100kbits/ s, fast mode 320kbits/ s | |
| UART | 1 | UART3: 3-wire, 3.3V, up to 4.0Mbps | |
| UART Debug | 1 | UART2: RS232, DB9 header, default baud rate 115200 | A53 Debug |
| 1 | UART4: 3.3V, by a 10-pin header with pitch of 2mm | M4 Debug | |
| RS485 | 1 | isolated RS485, up to 500kbps | |
| JTAG Debug | 1 | ||
