Máy tính nhúng OK3588J-C Single Board Computer SBC dựa trên Rockchip RK3588/RK3588J Forlinx
Khoảng giá: từ 12.555.000₫ đến 18.510.000₫
| Số lượng | Giá |
|---|---|
| 11 - 19 | 12.241.125₫ |
| 20 - 49 | 11.990.025₫ |
| 50 - 99 | 11.864.475₫ |
| 100 - 1000 | 11.801.700₫ |
| 1001 - 10000 | 11.299.500₫ |
Datasheet
Datasheet
Mã sản phẩm: SP25090427
| Model | 4GB+32GB, 8GB+64GB, 16GB+128GB |
|---|
Product series: 3588J-C

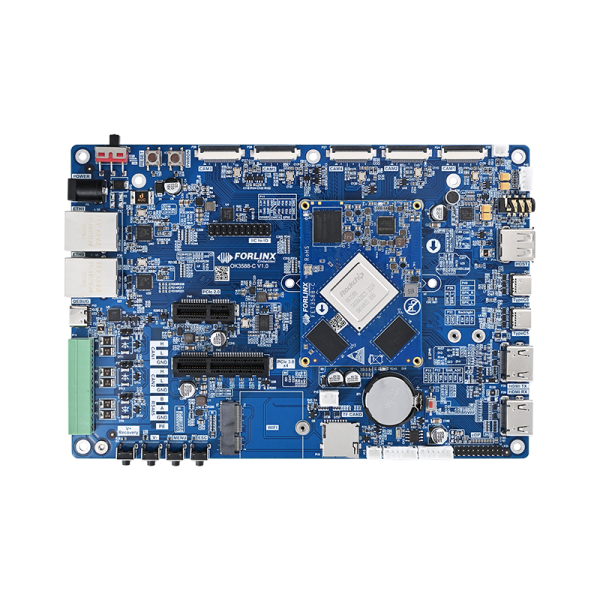

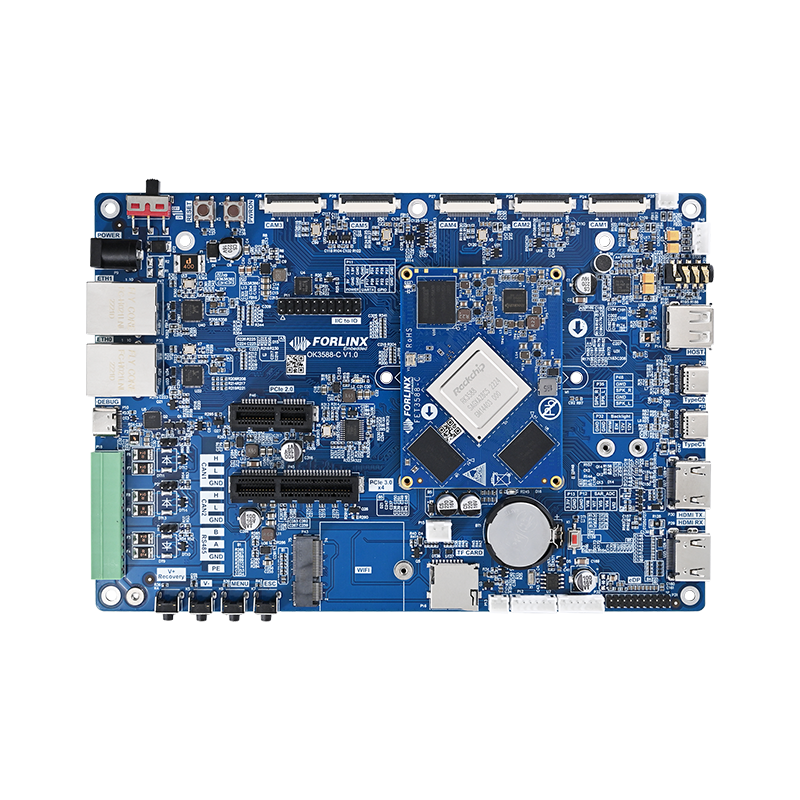

OK3588-C Single Board Computer Based on Rockchip RK3588
Forlinx OK3588-C SBC( single board computer) is featured with Rockchip’s RK3588 one of the most anticipated processors, it consists of FET3588-C SoM and carrier board. All pin sources are available and easy-to-use on carrier board circuited from the SoM, which is much convenient to users. The board can support 8K HD display and can support quad screens playing with different content.
OK3588-C SBC
Rich Ready-to-use Peripheral Source
8K Encoder/ Decoders Exploring
RK3588 supports 8K display output, supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps.
It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.
Various Display Interfaces: Quad-Screen Playback with Diverse Content
Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available.
Can support quad-screen playing together but with different content, up to 7680×4320@60Hz output, will take users fantastic visual experience.
Multiplied Isolation Circuits: Trusting the Board as a Secure Platform
User-Friendly Reference Files and Efficient After-Sale Technical Support
▊ RK3588 Video
OK3588-C Development Board
▊ Specifications
FET3588-C SoM Basic Parameters |
|
|---|---|
| Processor | Rockchip RK3588
CPU: NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating; GPU: • Mail-G610 MP4 • OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2 VPU: Decode: • H.265, VP9: up to 8K@60fps • H.264 up to 8K@30fps • AV1 up to 4K@60fps Encode: • H.265/HEVC, H.264/AVC: up to 8K@30fps |
| RAM | 4GB/8GB/16GB LPDDR4x |
| ROM | 32GB/64GB/128GB eMMC |
| Power Input | DC 12V |
| Working Temperature | 0℃ ~ +80℃ / -40℃ ~ +85℃ |
| Package | Board to board connector(4*100pin, 0.4mm pitch, combined height 1.5mm) |
| OS version | Linux5.10.66, Android12.0, Forlinx Desktop 20.04/22.04 |
| Dimension | 50mm x 68mm |
▊ RK3588 SoM Feature
FET3588-C SoM Function Parameter |
||||
|---|---|---|---|---|
| Interface | Type | QTY | Spec. | |
| Video Input | MIPI DC PHY(DPHY/CPHY) | 2 | · Supports DPHY or CPHY;
· 4-lane MIPI DPHY V2.0m, each line up to 4.5Gbps; · 3-lane MIPI CPHY V1.1, each line up to 2.5Gsps |
Supported MIPI-CSI combo:
2 MIPI DCPHY + 4 x 2 lanes MIPI CSI DPHY 2 MIPI DCPHY + 1 x 4 lanes MIPI CSI DPHY 2 MIPI DCPHY + 2 x 4 lanes MIPI CSI DPHY |
| MIPI CSI DPHY | 4 | · 2-lane MIPI DPHY V1.2, each line up to 2.5Gsps;
· two 2-lane DPHY can be combined to a 4-lane DPHY |
||
| DVP | 1 | · 8/10/12/16-bit standard DVP up to 150MHz input;
· Supports BT.601/BT.656 and BT.1120 VI |
||
| HDMI RX | 1 | · Supports 3.4Gbps~6Gbps HDMI 2.0;
· Supports 250Mbps~3.4Gbps HDMI 1.4b; · Supports HDCP2.3 and HDCP1.4; |
||
| Video Output | HDMI/eDP TX | ≤ 2 | · HDMI/eDP TX are multiplexed, each interface supports x1, x2 and x4;
· HDMI up to 7680×4320@60Hz, supports 3, 6, 8, 10, 12Gbps band widths, supports HDCP2.3; · eDP is up to 4K@60Hz, supports 1.62Gbps, 2.7Gbps and 5.4Gbps band widths, supports HDCP1.3. |
|
| DP TX | 2 | · Supports 2 DP TX 1.4a, which is available for USB3.1 Gen1, supports 1/ 2/ 4 lanes;
· Up to 8192×4320@30Hz; · Supports HDCP2.3, HDCP 1.3. |
||
| MIPI DSI | 2 | · Supports 2 MIPI DPHY2.0 or CPHY 1.1, up to 4K@60Hz;
· Supports left/ right mode dual MIPI-DSI, available for RGB/ YUV up to 10-bit; |
||
| BT.1120 | 1 | · Supports RGB up to 8-bit and rating up to 150MHz;
· Up to 1920×1080@60Hz; |
||
| Audio | I2S | ≤ 4 | · 8 lanes I2S0/I2S1: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz;
· 2 lanes I2S2/I2S3: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz. |
|
| SPDIF | 2 | · Supports 2x 16-bit data storing;
· Supports biphasic stereo output. |
||
| PDM | 2 | · Up to 8 channels, resolution 16~24 bits, sampling rate up to 192KHz;
· Supports PDM primary receive mode. |
||
| DSM PWM | 1 | Convert PCM data to bitstream digital directly to 1-bit data output, the output digital signal will be filtered to audio signal. | ||
| Network | Ethernet | 2 | 2x GMAC by RGMII / RMII, 10/100/1000Mbps. | |
| Others | USB3.1 Gen1 | 3x | · USB3.1 Gen1 up to 5Gbps;
· 2 USB3.1 OTG, multiplexed with DP TX(USB3OTG_0 and USB3OTG_1), USB3OTG_o and USB3OTG_1 support USB Type-C and DP Alt; · 1 USB3.1 Host, multiplexed with PIPE PHY2(USB3OTG_2). |
|
| USB 2.0 Host | 2 | 2x USB 2.0 Host | ||
| PCIe 2.0 | ≤3 | Each PCIe2.1 can support 1 lane, up to 5Gbps | ||
| PCIe 3.0 | 2 | · Supports RC and EP, up to 8Gbps;
· Support 4 combinations: 1 x4, 2 x2, 4 x1, 1 x2+ 2 x1 |
||
| SPI | ≤5 | · Each controller supports two chip select output;
· Serial master mode and serial slave mode are configurable |
||
| I2C | ≤9 | · Support 7-bit and 10-bit address mode;
· Standard mode data transferring rate up to 100K bits/s, and high-speed mode up to 400K bits/s. |
||
| UART | ≤10 | · Built-in 2 64-bit FIFO, can be used for TX and RX respectively;
· Supports 5-bit, 6-bit, 7-bit and 8-bit serial data transceiving, baud rate up to 4Mbps; · All 10 UART can support auto flow control. |
||
| SATA | ≤3 | · 3 SATA3.0 controllers, PIPE PHY0/1/2 is multiplexed by PCIe and USB_HOST2;
· Supports eSATA up to 6Gbps. |
||
| PWM | ≤16 | Up to 16 on-chip PWM, supports capturing mode. | ||
| ADC | ≤8 | 8x 12-bit single-end input SAR-ADC, sampling rate up to 1MS/s. | ||
▊ Order Options
| Model | RAM | Flash | Status |
| FET3588-C+244GSE32GCC11 | 4GB | 32GB | Small batch |
| FET3588-C+248GSE64GCD11 | 8GB | 64GB | Small batch |
| FET3588-C+2416GSE128GCE11 | 16GB | 128GB | Small batch |
▊ Carrier Board
 |
 |
| OK3588-C Development Board Function Parameters | ||
|---|---|---|
| Interface | QTY | Spec. |
| MIPI CSI | 5 | · 2x MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; Available on carrier board by 2 26-pin FPC connectors, OV13850 is the default and recommended camera model;
· 2x MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; Available on carrier board by 3 26-pin FPC connectors, OV5645 is the default and recommended camera model; · 1 x MIPI DPHY V1.2 4 lanes, each lane up to 2.5Gbps |
| MIP DSI | 2 | · Each MIPI-DSI supports 4 lanes output, up to 4K@60fps;
· Forlinx default option: 7’’ MIPI DSI module, 1024x 600@30FPS |
| HDMI RX | 1 | · Standard HDMI connector, up to 4K@60Hz |
| HDMI | 1 | · Standard HDMI connector, up to 7680×4320@60Hz |
| eDP TX | 1 | · Can fit 1080p@60Hz display;
· Up to 4K@60Hz |
| DP TX | 2 | · 2 DP used together with USB3.1 Gen1, available on carrier board by Type-C connector;
· up to 7680×4320@30Hz; |
| USB3.1 Gen1 | 2 | · available on carrier board by Type-C connector;
· used together with DP TX, up to 5Gbps |
| USB2.0 Host | 1 | · available on carrier board by Type-A USB connector;
· supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) |
| PCIe3.0 | 1 | · 1×4 lanes PCIe signal is available on carrier board by PCIe x 4 slot;
· supports 2.5Gbps(PCIe1.1), 5Gbps(PCIe2.1), 8Gbps(PCIe3.0) |
| PCIe2.0 | 1 | · By PCIe x 1 slot, up to 5Gbps |
| Ethernet | 2 | · RJ 45 connector, 10/100/1000 Mbps |
| TF Card | 1 | · Up to 150MHz, supports SDR104 mode |
| Audio | 1 | · On-board codec chip, supports earphone output, MIC input and Speaker |
| RS485 | 1 | |
| UART | 1 | · Headers with pitch of 2.54mm, baud rate up to 4Mbps |
| 4G/5G | 1 | · M.2 4G/ 5G module |
| WIFI&BT | 1 | · M.2, supports WI-FI 6 SU and MU-MIMO + Bluetooth 5.3 |
| ADC | 5 | · PH2.0 connector, up to 12-bit resolution and 1MS/ s sampling rate |
| RTC | 1 | |
| FAN | 1 | |
| GPIO | 9 | · Pin headers with pitch of 2.54mm(3.3V) for 9 GPIO and power of 5V/ 3.3V/ 1.8V |
▊ Downloads
Catalog: Forlinx Catalog Manual
Product manual: FET3588-C System on Module Brief
| Android12 | User manual, compiling guideline, kernel source code, file system, OS image, VM ubuntu image, TF card tool, USB OTG tool, QT demos and source code |
| Hardware | User manual, carrier board schematic, carrier board PCB(AD), datasheet, carrier board and SoM DXF files, pinmux sheet |
