Máy tính nhúng OK3568-C Single Board Computer SBC dựa trên Rockchip RK3568J/RK3568 Forlinx
Khoảng giá: từ 5.745.000₫ đến 6.690.000₫
| Số lượng | Giá |
|---|---|
| 11 - 19 | 5.601.375₫ |
| 20 - 49 | 5.486.475₫ |
| 50 - 99 | 5.429.025₫ |
| 100 - 1000 | 5.400.300₫ |
| 1001 - 10000 | 5.170.500₫ |
Datasheet
Datasheet
Mã sản phẩm: SP25090479
| Model | 1GB+8GB, 2GB+32GB, 4GB+32GB |
|---|
OK3568-C Single Board Computer Based on Rockchip RK3568 Processor
Product series: 3568-C

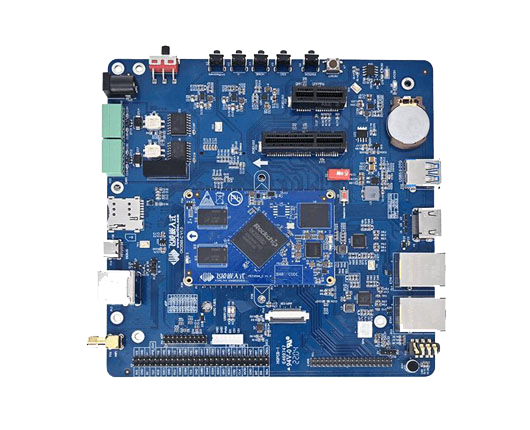

OK3568-C single board computer(SBC)/development board is populated with SoM FET3568-C on carrier board through four ultra-thin connectors. The carrier board ensures the SoM source is fully available to achieve users’ fast evaluation purpose. Besides, the board is designed with ESC solution which simplifies design reference to help users to shorten your product time-to-market.
OK3568-C SBC
Advanced and Robust
FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm process technology,
running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.
High-performance NPU for Lightweight AI
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit.
In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
Multiple Display Interfaces: Realize Three-Screen Heterogeneous Display
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K,
which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful Video Codec Performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding,
and can support multiple video sources decoding simultaneously, support HDR10 with excellent color and dynamic range performance;
FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
Rich High-Speed Interfaces: Expand Functionality and Connect More Efficiently
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
Industrial Applicable EMC Protection
OK3568-C carrier board is designed with EMC protection solution, which is applicable for industrial related scenes.
CAN and Ethernet are designed with EFT3, ESD3 and Surge3; HDMI and USB are designed with ESD3.
User-friendly Designing
Multiple pins are multiplexed on OK3568-C carrier board, user friendly and easy to go.
Diverse Networking Connectivity
Dual native Gigabit Ethernet, dual-band WiFi and 4G/ 5G modem slot are all available on OK3568-C carrier board for networking requirement.
▊ Rockchip RK3568 SoM /SBC Video
Forlinx RK3568 SoM & Single Board Computer
▊ Hardware Features
| FET3568-C SoM Basic Parameters | |||
|---|---|---|---|
| CPU | Rockchip RK3568 quad-core Cortex-A55@2.0GHz Rockchip RK3568J quad-core Cortex-A55@1.8GHz |
||
| GPU | • Mali-G52-2EE • OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0 |
||
| NPU | 1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation. | ||
| VPU | Decode: • H.264, H.265, VP9: up to 4096×2304@60fps • VP8: up to 1920×1088@60fps • VC1, MPEG-4, MPEG-2, MPEG-1: up to 1920×1088@60fps • H.263: up to 720×576@60fps |
Encode: H.264/AVC, H.265/HEVC: up to 1920×1080@60fps |
|
| RAM | 1GB/2GB/4GB/8GB DDR4(Standard 2GB) | ROM | 8/16/32GB eMMC |
| OS | Linux4.19/5.10+Qt5.12, Debian 11, Android 11, Forlinx Desktop 22.04 | Voltage input | DC5V |
| Package | board to board connector(4*80pin Spacing 0.5mm) | ||
| Working temperature width | 0℃ ~ 70℃ / -40~85℃ | Dimensions | 45x70mm |
| FET3568-C SoM Software Support | ||||
|---|---|---|---|---|
| Operating Systems | Linux5.10.160+Qt5.15.8、Android11、ForlinxDesktop20.04（File System Based on Ubuntu 20.04）、Debian11、
AMP (based on Linux 4.19.232 + Qt 5.15.8), OpenHarmony 4.1 (based on Linux 5.10.184) |
|||
| Operating Systems Adaptation Details | Product | RAM | ROM | Operating Systems |
| FET3568-C | 1GB | 8GB | Linux5.10.160、AMP、OpenHarmony4.1* | |
| 2GB | 16GB | Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1 | ||
| 2GB | 32GB | Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1* | ||
| 4GB | 32GB | |||
| FET3568J-C | 1GB | 8GB | Linux5.10.160、AMP、OpenHarmony4.1* | |
| 2GB | 16GB | Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1 | ||
| 4GB | 32GB | Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1* | ||
| FET3568J-C2 | 4GB | 32GB | Linux5.10.160、Android11、ForlinxDesktop20.04*、Debian11*、AMP*、OpenHarmony4.1* | |
| 8GB | 64GB | |||
| Note: Systems marked with * are in adaptation. | ||||
| System Flashing Methods | • SD card
• USB OTG |
|||
| FET3568-C SoM Function parameter | |||
|---|---|---|---|
| Interface | QTY | Spec. | |
| Display | 3 | Equipped with 3 display controller, supports 3 simultaneous output in RGB, LVDS, MIPI DSI, HDMI, eDP interface. • RGB: RGB888, up to 1280×800; • LVDS: single-channel output, up to 1280×800, multiplexed with MIPI-DSI0; • MIPI-DSI: single-channel output, up to 1920×1080@60Hz; dual-channel output up to 2560*1600@60Hz; • HDMI: up to 1080p@120Hz or 4096×2304@60Hz; • eDP: eDP 1.3, up to 2560×1600@60Hz; |
|
| Camera | 2 | 1x DVP, 1x 4-lane MIPI-CSI. | |
| Audio | 4 | 1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM. | |
| SDIO | 3 | SDIO 3.0, data throughput up to: 104MB/S | |
| Ethernet | 2 | 2GMAC, by RGMII / RMII | |
| USB 2.0 | 2 | USB2.0 Host, separate but not multiplexed with USB3.0. | |
| USB 2.0 | 2 | 1 USB 2.0 Host and1 USB 2.0 OTG in USB 3.0. Can be used as 2 independent USB 2.0 USB 3.0 is not needed | |
| USB 3.0 | 2 | 1x USB 3.0 Host, 1x USB 3.0 OTG. | They share 3 sets of SerDes, in this case, only 3 functional interface of them could be used simultaneously. |
| SATA | 3 | SATA 3.0, up to 6.0Gb/s, support eSATA. | |
| PCIe2.1 | 1 | PCIe 2.1 x1, up to 5.0Gbps, RC mode. | |
| PCIe3.0 | 2 | PCIe 3.0, 1x2Lanes or 2x1Lane, each lane up to 8.0Gbps. 1Lane only supports Root Complex (RC) mode. 2Lanes support both Root Complex(RC) and End Point(EP) modes. |
|
| UART | 10 | up to 4Mbps. | |
| CAN | 3 | CAN2.0 B is well supported | |
| SPI | 4 | Host mode and slave mode are optional and configurable | |
| I2C | 5 | Supports 7bits and 10bits address modes, up to 1 Mbit/s. | |
| PWM | 16 | 32bits timer/counter | |
▊ Carrier Board
 |
 |
| OK3568-C Carrier Board Features | ||
|---|---|---|
| Interface | spec. | |
| Display | HDMI 2.0 | resolution up to 1080p@120Hz or 4096×2304@60Hz; |
| eDP | supports eDP 1.3, resolution up to 2560×1600@60Hz; | |
| LVDS | single-channel output, resolution up to 1280×800; | |
| LCD | RGB888 up to 1280×800; multiplexed with SPI0, SPI2, UART3, UART4, UART5 and UART7. | |
| MIPI-DSI1 | single-channel output, up to 1920×1080@60Hz; | |
| Camera | MIPI-CSI, tested and recommended model OV13850. | |
| Audio | 1x stereo headphone output; 1x 1.3W class D amplifier output; 1x MIC input. | |
| TF Card | For storage expanding and OS firmware flashing. | |
| Ethernet | 2x 10/100/1000Mbps auto-negotiation, RJ45 connector. | |
| 4G/5G modem | M.2 Key-B, contains USB 3.0/2.0 for 4G/5G module expanding; Tested and recommended model: EM05-CE (4G modem, compatible with EC20), RM500U-CN (5G modem) |
|
| Wi-Fi&BT | On-board AW-CM358SM, 2.4G/5G dual-band Wi-Fi, BT5.0. WiFi by SDIO; BT by UART |
|
| USB 2.0 | 2x USB 2.0 Host, Type-A | |
| USB 3.0 | 1x USB 3.0 Host, Type-A. | |
| USB 2.0 OTG | contained in USB 3.0, can be used as slave mode for OS iamge flashing and ADB debugging. | |
| PCIe 2.1 | Standard PCIe x1 socket; multiplexed with SATA | |
| PCIe 3.0 | Standard PCIe x4 socket, can be configured as 2 PCIe x1. | |
| UART | 3x 3.3V TTL level, by pin headers with pitch of 2.54mm. | |
| CAN | 2x CAN2.0; with isolation and ESD protection. | |
| SPI | 2x 3.3V TTL, by pin headers with pitch of 2.54mm | |
| I2C | 1x 3.3V TTL level, by pin headers with pitch of 2.54mm. | |
| RTC | CR2032 | |
| Buttons | 8: reset, power on/off, OTG programming, Maskrom, VOL+, VOL-, HOME, ESC. | |
| QSPI | on-board 32MB QSPI Nor Flash. | |
| Debug | converted by USB, Type-C connector that convenient for laptop users. | |
| Power input | DC 12V | |
