FETMX8MP-C System On Module SOC IMX8M Plus Forlinx
Khoảng giá: từ 3.480.000₫ đến 4.770.000₫
| Số lượng | Giá |
|---|---|
| 20 - 50 | 3.427.800₫ |
| 51 - 100 | 3.375.600₫ |
| 101 - 500 | 3.323.400₫ |
| 501 - 999 | 3.271.200₫ |
| 1000 + | 3.236.400₫ |
Datasheet
Datasheet
Mã sản phẩm: SP25082889
| Model | 1GB+8GB, 2GB+16GB, 4GB+16GB |
|---|

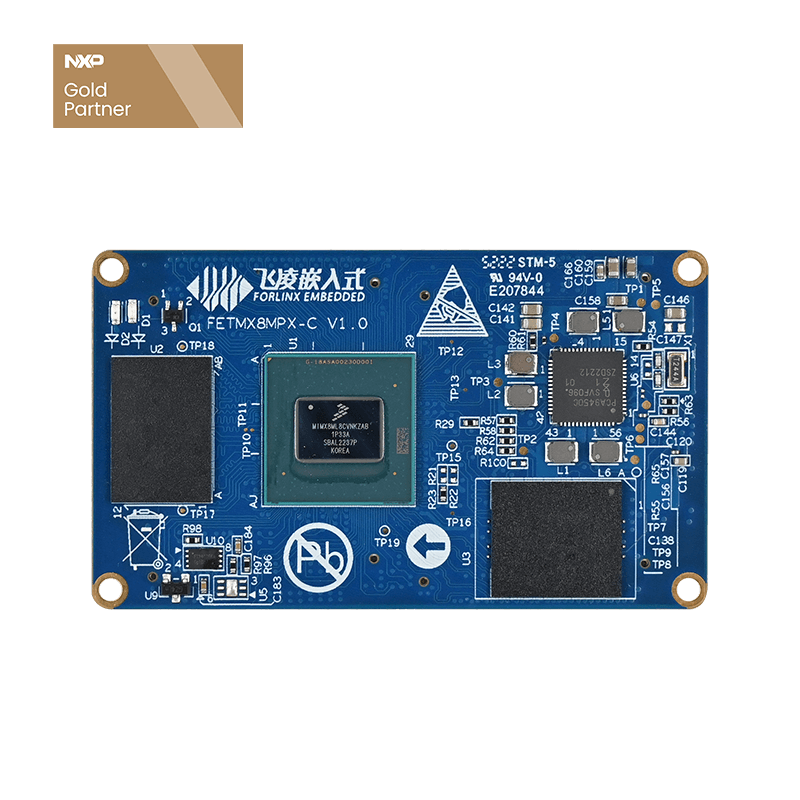

FETMX8MP-C System On Module based on NXP i.MX 8M Plus
Product series: 8MPQ
FETMX8MP-C System On Module(SoM) / Computer on Module is developed and designed based on the NXP i.MX 8M Plus processor, which focuses on machine learning and vision, advanced multimedia, and highly reliable industrial automation. It is designed to meet the demands of applications such as smart cities, industrial IoT, smart healthcare, and intelligent transportation.
Powerful quad-core or dual-core Arm Cortex-A53 processor has a maximum clock frequency of 1.6 GHz and includes a Neural Processing Unit (NPU) capable of up to 2.3 TOPS. It features an integrated Image Signal Processor (ISP) and two camera inputs, enabling efficient advanced vision systems. Multimedia capabilities include video encoding (including H.265) and decoding, 3D/2D graphics acceleration, and various audio and voice features. Real-time control is managed by the Cortex-M7, with a powerful control network featuring CAN FD and dual Gigabit Ethernet, including Time-Sensitive Networking (TSN).
High-speed communication interfaces include 2 x USB 3.0, 1 x PCIe 3.0, 2 x SDIO 3.0, and 2 x CAN-FD, making it suitable for 5G networks, high-definition video, dual-band WiFi, and high-speed industrial Ethernet applications.
The FETMX8MP-C series of System on Module includes two models with different iMX8M processors. For a complete list of iMX8M products, please refer to the Forlinx iMX8M System on Module product family.
Feature of i.MX 8M Plus SoM
- Powerful quad-core or dual-core Arm® Cortex®-A53 processor at 1.6GHz, with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS.
- Built-in image signal processor (ISP) and two camera inputs to create an effective advanced vision system.
- Multimedia functions include video encoding (including H.265) and decoding, 3D/2D graphics acceleration, and multiple audio and voice functions.
- Real-time control through Cortex-M7, powerful control network by dual CAN-FD and dual Gigabit Ethernet, with time sensitive networking (TSN).
- 2 USB3.0, 1 PCIe3.0, 2 SDIO3.0, 2 CAN-FD, and other high-speed communication interfaces for 5G network, high-definition video, dual-band WIFI, high-speed industrial Ethernet, and other applications.
FETMX8MP-C SoM
High-speed Communication Interface
4K Picture Quality and HiFi Voice Experience
The HDMI interface enables up to 4K display output. Additionally, it is equipped with LVDS and MIPI-DSI display interfaces.
It can support three display interfaces, including three screens with the same display or three screens with different displays.
It incorporates the latest audio technology, such as Cadence® Tensilica® HiFi 4 DSP @ 800 MHz, 6x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-channel PDM microphone input, eARC, and ASRC.
Advanced Multimedia Technology
3D/2D Graphics Acceleration
Machine Learning and Vision
Built-in NPU, AI computing capability 2.3TOPS, meeting the needs of lightweight edge computing
Built-in Image Signal Processor (ISP)
High-Version and High-Stability Operating System
Product Applications
▊ iMX8M Plus SoM/SBC Video
OKMX8MP-C Single Board Computer Demo | iMX8M Plus NXP based
▊ Specifications
iMX8M Plus System On Module Basic Parameters |
||
|---|---|---|
| Product Name | FETMX8MPQ-C | FETMX8MPL-C |
| CPU | NXP i.MX8M Plus Quad | NXP i.MX8M Plus QuadLite |
| Architecture | Quad-Core Cortex-A53, Single-Core Cortex-M7 | Quad-Core Cortex-A53, Single-Core Cortex-M7 |
| Frequency | 1.6GHz + 800MHz | 1.6GHz + 800MHz |
| RAM | 1/2/4GB LPDDR4 | 1/2GB LPDDR4 |
| ROM | 8GB / 16GB eMMC | 8GB / 16GB eMMC |
| GPU | GC7000UL（3D） GC520L（2D） OpenGL、OpenCL、Vulkan |
GC7000UL（3D） GC520L（2D） OpenGL、OpenCL、Vulkan |
| NPU | 2.3 TOPS | —— |
| Video Hardware Decoding | Resolution: 1080p60 Formats: VP8, VP9, H.264, H.265 |
—— |
| Video Hardware Encoding | Resolution: 1080p60 Format: H.264, H.265 |
—— |
| OS Support | Linux5.4.70 | Linux5.4.70 |
| Android11 | —— | |
| Working Voltage | 5V | 5V |
| Interface Mode | Ultra-thin board-to-board connector (4*80pin pitch 0.5mm) | Ultra-thin board-to-board connector (4*80pin pitch 0.5mm) |
| Working Temperature | -40℃~+85℃ | -40℃~+85℃ |
| Dimensions | 62mm × 36mm, Thickness 1.6mm, 8-layer ENIG PCB | 62mm × 36mm, Thickness 1.6mm, 8-layer ENIG PCB |
iMX8M Plus System On Module Function Parameters |
||
|---|---|---|
| Function | QTY | Parameters |
| USB | 2 | The CPU contains 2 USB 3.0/2.0 controllers with integrated PHY;
Host mode: Support Super-speed (5Gbit/s), high-speed (480Mbit/s), full-speed (12Mbit/s), low-speed (1.5Mbit/s). Device mode: SS/HS/FS |
| PCIE | 1 | Support 1 PCI Express Gen3. |
| MIPI_CSI | 2 | Provides two 4-lane MIPI camera serial interfaces, which can work up to 1.5 Gbps. |
| MIPI_DSI | 1 | Provides a 4-lane MIPI display serial interface, which can work up to 1.5 Gbps.
• 1080 p60 • WUXGA (1920×1200) at 60 Hz • 1920×1440 at 60 Hz • UWHD (2560×1080) at 60 Hz • WQHD (2560×1440) by reduced blanking mode |
| HDMI | 1 | Supports HDMI 2.0a display resolution up to 4Kp30Supports HDMI2.1 eARC |
| LVDS | 1 | Single channel (4 lanes) supports 720p60
Dual asynchronous channels (8 data, 2clocks) support 1920x1200p60 |
| Ethernet | ≤2 | Ethernet ≤2 supports 2 RGMII interfaces, one of which supports TSN |
| SD | ≤2 | SD2, 4-bit, support 1.8/3.3V mode switching SD1, 8-bit, only support 1.8V mode |
| UART | ≤4 | The maximum baud rate supported is 4Mbps. |
| SPI | ≤3 | The maximum supported rate is 52Mbit/s, master-slave mode can be configured |
| I2C | ≤5 | The highest rate supported in standard mode is 100Kbit/s;
The highest rate supported in fast mode is 400Kbit/s. |
| CAN | ≤2 | The CAN FD protocol is used to implement the CAN communication controller, and the CAN protocol conforms to the CAN 2.0B protocol specification. (CAN FD requires CPU version support) |
| SAI | ≤6 | Synchronous Audio Interface (SAI), a full-duplex serial interface that supports frame synchronization, such as I2S, AC97, tdM, and codec/DSP interfaces. |
| SPDIF | ≤1 | A standard audio file transmission format, jointly developed by Sony and Philips. |
| PWM | ≤4 | With 16-bit counter; |
| QSPI | ≤1 | Has been occupied by the core board, connected to the 16MB Nor Flash |
| JTAG | 1 | |
Note: The parameters in the table are hardware design or CPU theoretical values
| Product Name Description | |||
|---|---|---|---|
| FETMX8MP-C System On Module | General name of products for Forlinx external promotion | FETMX8MPQ-C System On Module | Quad-core processor, currently on sale. |
| FETMX8MPD-C System On Module | Dual-core processor, unreleased. | FETMX8MPX-C System On Module | The PCB is compatible with Quad-core and Dual-core (processors). |
| FETMX8MPL-C System On Module | i.MX8M Plus QuadLite Processor | ||
▊ Carrier Board
OKMX8MP-C Single Board Computer
Forlinx offers the OKMX8MP-C Development Board for evaluation of the FETMX8MP-C System on Module. The base board has taken the great computing and multimedia capabilities of the i.MX 8M Plus processor to provide dual Gigabit Ethernet ports, one with TSN, and WiFi/BT and M.2 B-key and mini-PCIe sockets with optional 5G and 4G modules.
The feature-packed board also offers media interfaces including HDMI 2.0a, LVDS, MIPI-DSI with optional touch screen, 2x MIPI-CSI with optional cameras and audio I/O. Other key interfaces include 2x USB 3.0, Type-C, serial and 2x CAN-FD.
Forlinx offers a design service to customize the base board to meet specific requirements.
System: Linux5.4.70, Android 11
