FET3588 System On Module SOM Rockchip RK3588/RK3588J Forlinx
Khoảng giá: từ 5.940.000₫ đến 9.270.000₫
| Số lượng | Giá |
|---|---|
| 20 - 50 | 5.850.900₫ |
| 51 - 100 | 5.761.800₫ |
| 101 - 500 | 5.672.700₫ |
| 501 - 999 | 5.583.600₫ |
| 1000 + | 5.524.200₫ |
Datasheet
Datasheet
Mã sản phẩm: SP25082834
| Model | 4GB+32GB, 8GB+64GB, 16GB+128GB |
|---|

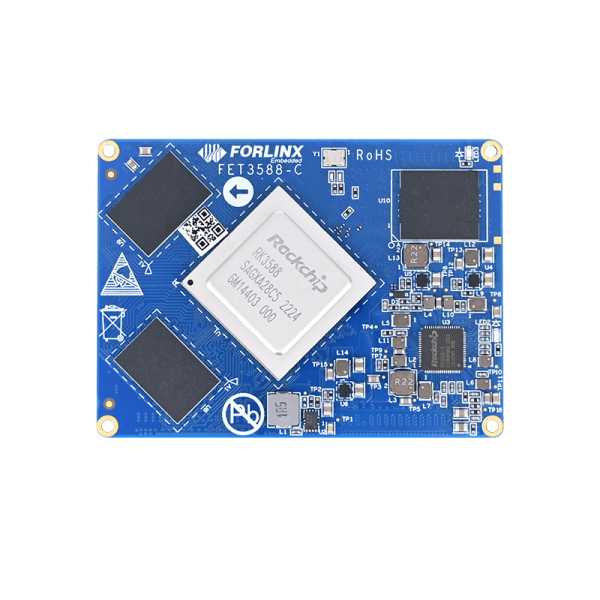

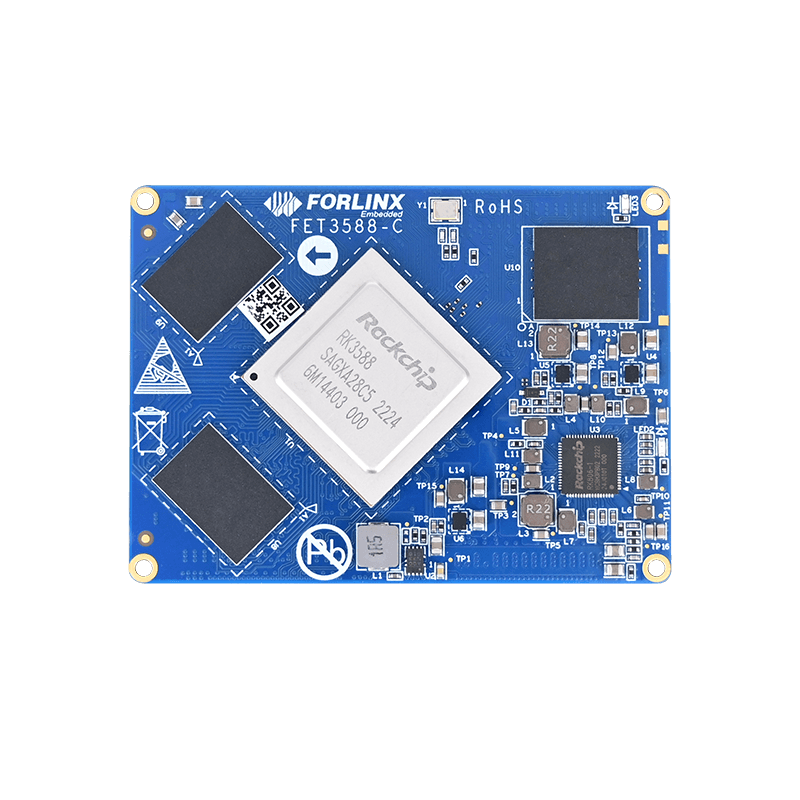

FET3588-C System on Module based on Rockchip RK3588
Product series: 3588-C
FET3588-C System on Module (SoM) carries Rockchip’s advanced hybrid processor RK3588 contains quad-core Cortex-A76 and Cortex-A55 cores, A76 core runs up to 2.4GHz, and A55 core clock up to 1.8GHz. It has a super advanced engine can support up to 8K output, quad-screen with different content output; The SoM has been subjected to rigorous ambient temperature testing, which approve that it could be a trusted and best option for your high-end applications and products.
Feature of Rockchip RK3588
- 8K video codec, can support various codec forms;
- ISP3.0 up to 48MP;
- Various video outputs up to 8K@60Hz;
- 4 PCIe3.0 and 3 PCIe2.1, up to 8Gbps;
- Multiple USB3.1 Type-C, can support SATA3.1;
- The SoM designed with 4×100-pin ultra thin connectors, combined connector height is only 1.5mm;
FET3588-C SoM
New Generation Advanced AIoT Processor RK3588
As a universal 8K supported SoC, RK3588 is outstanding in integer operations, floating-point arithmetic, RAM, low-power and even the outline.
Advanced 8nm processing, Big & Little core structure and L3 cache, which are all have been greatly improved its computing capability.
NPU With Processing Performance Up To 6 TOPS
RK3588 processor contains a triple-core NPU, supports co-work and work independently; Supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs.
MAC utilization improved by more than 28% together with 2.0 RKNN TOOLkit2 can meet most demand for edge computing.
8K Encoder/ Decoders Exploring
RK3588 supports 8K display output, supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps.
It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.
Various Display Interfaces: Quad-Screen Playback with Diverse Content
Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available.
Can support quad-screen playing together but with different content, up to 7680×4320@60Hz output, will take users fantastic visual experience.
New Generation ISP Substantially Boosts Image Quality
RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP3.0.
It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.
Rich Ready-to-use Peripheral Source
User-Friendly Reference Files and Efficient After-Sale Technical Support
Multiplied Isolation Circuits: Trusting the Board as a Secure Platform
Diverse Application Scenarios Empower Multiple Industrial Sectors
▊ RK3588 SoM & SBC Video
FET3588-C System on Module based on Rockchip RK3588
▊ Specifications
FET3588-C SoM Basic Parameters |
|
|---|---|
| Processor | Rockchip RK3588
CPU: NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating; GPU: • Mail-G610 MP4 • OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2 VPU: Decode: • H.265, VP9: up to 8K@60fps • H.264 up to 8K@30fps • AV1 up to 4K@60fps Encode: • H.265/HEVC, H.264/AVC: up to 8K@30fps |
| RAM | 4GB/8GB/16GB LPDDR4x |
| ROM | 32GB/64GB/128GB eMMC |
| Power Input | DC 12V |
| Working Temperature | 0℃ ~ +80℃ / -40℃ ~ +85℃ ℃ |
| Package | Board to board connector(4*100pin, 0.4mm pitch, combined height 1.5mm) |
| OS version | Linux5.10.66, Android12.0, Forlinx Desktop 20.04/22.04 |
| Dimension | 50mm x 68mm |
▊ RK3588 SoM Feature
FET3588-C SoM Function Parameter |
||||
|---|---|---|---|---|
| Interface | Type | QTY | Spec. | |
| Video Input | MIPI DC PHY(DPHY/CPHY) | 2 | · Supports DPHY or CPHY;
· 4-lane MIPI DPHY V2.0m, each line up to 4.5Gbps; · 3-lane MIPI CPHY V1.1, each line up to 2.5Gsps |
Supported MIPI-CSI combo:
2 MIPI DCPHY + 4 x 2 lanes MIPI CSI DPHY 2 MIPI DCPHY + 1 x 4 lanes MIPI CSI DPHY 2 MIPI DCPHY + 2 x 4 lanes MIPI CSI DPHY |
| MIPI CSI DPHY | 4 | · 2-lane MIPI DPHY V1.2, each line up to 2.5Gsps;
· two 2-lane DPHY can be combined to a 4-lane DPHY |
||
| DVP | 1 | · 8/10/12/16-bit standard DVP up to 150MHz input;
· Supports BT.601/BT.656 and BT.1120 VI |
||
| HDMI RX | 1 | · Supports 3.4Gbps~6Gbps HDMI 2.0;
· Supports 250Mbps~3.4Gbps HDMI 1.4b; · Supports HDCP2.3 and HDCP1.4; |
||
| Video Output | HDMI/eDP TX | ≤ 2 | · HDMI/eDP TX are multiplexed, each interface supports x1, x2 and x4;
· HDMI up to 7680×4320@60Hz, supports 3, 6, 8, 10, 12Gbps band widths, supports HDCP2.3; · eDP is up to 4K@60Hz, supports 1.62Gbps, 2.7Gbps and 5.4Gbps band widths, supports HDCP1.3. |
|
| DP TX | 2 | · Supports 2 DP TX 1.4a, which is available for USB3.1 Gen1, supports 1/ 2/ 4 lanes;
· Up to 8192×4320@30Hz; · Supports HDCP2.3, HDCP 1.3. |
||
| MIPI DSI | 2 | · Supports 2 MIPI DPHY2.0 or CPHY 1.1, up to 4K@60Hz;
· Supports left/ right mode dual MIPI-DSI, available for RGB/ YUV up to 10-bit; |
||
| BT.1120 | 1 | · Supports RGB up to 8-bit and rating up to 150MHz;
· Up to 1920×1080@60Hz; |
||
| Audio | I2S | ≤ 4 | · 8 lanes I2S0/I2S1: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz;
· 2 lanes I2S2/I2S3: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz. |
|
| SPDIF | 2 | · Supports 2x 16-bit data storing;
· Supports biphasic stereo output. |
||
| PDM | 2 | · Up to 8 channels, resolution 16~24 bits, sampling rate up to 192KHz;
· Supports PDM primary receive mode. |
||
| DSM PWM | 1 | Convert PCM data to bitstream digital directly to 1-bit data output, the output digital signal will be filtered to audio signal. | ||
| Network | Ethernet | 2 | 2x GMAC by RGMII / RMII, 10/100/1000Mbps. | |
| Others | USB3.1 Gen1 | 3x | · USB3.1 Gen1 up to 5Gbps;
· 2 USB3.1 OTG, multiplexed with DP TX(USB3OTG_0 and USB3OTG_1), USB3OTG_o and USB3OTG_1 support USB Type-C and DP Alt; · 1 USB3.1 Host, multiplexed with PIPE PHY2(USB3OTG_2). |
|
| USB 2.0 Host | 2 | 2x USB 2.0 Host | ||
| PCIe 2.0 | ≤3 | Each PCIe2.1 can support 1 lane, up to 5Gbps | ||
| PCIe 3.0 | 2 | · Supports RC and EP, up to 8Gbps;
· Support 4 combinations: 1 x4, 2 x2, 4 x1, 1 x2+ 2 x1 |
||
| SPI | ≤5 | · Each controller supports two chip select output;
· Serial master mode and serial slave mode are configurable |
||
| I2C | ≤9 | · Support 7-bit and 10-bit address mode;
· Standard mode data transferring rate up to 100K bits/s, and high-speed mode up to 400K bits/s. |
||
| UART | ≤10 | · Built-in 2 64-bit FIFO, can be used for TX and RX respectively;
· Supports 5-bit, 6-bit, 7-bit and 8-bit serial data transceiving, baud rate up to 4Mbps; · All 10 UART can support auto flow control. |
||
| SATA | ≤3 | · 3 SATA3.0 controllers, PIPE PHY0/1/2 is multiplexed by PCIe and USB_HOST2;
· Supports eSATA up to 6Gbps. |
||
| PWM | ≤16 | Up to 16 on-chip PWM, supports capturing mode. | ||
| ADC | ≤8 | 8x 12-bit single-end input SAR-ADC, sampling rate up to 1MS/s. | ||
▊ Carrier Board
OK3588-C Single Board Computer
Forlinx provides OK3588-C development board for evaluating the FET3588-C system on modules. Its carrier board has developed a wealth of peripheral devices and interfaces, such as serial ports, 2*USB3.1, 1*PCIe3.0, 2*10/100/1000 Mbps Ethernet, 1*TF card slot, 1*M.2 for 4G/5G Module, 5*MIPI CSI, WI-FI 6&Bluetooth 5.3, 9*GPIO…with 48 million pixel ISP3.0, support a variety of display interfaces, 1*HDMI 2.1, 1*eDP 1.3, 2*DP 1.4, 2*MIPI-DSI, and four different displays, up to 7680×4320@60Hz, which can provide ultimate visual experience.
Forlinx provides RK3588 development kit together with related accessories, optional for OV13850 camera module, OV5645 camera module, 7 ” MIPI display, 10.1-inch LVDS screen, 4G module, and 5G module to help users develop quickly. Of course, development resources, like kernel and driver source code, user manual, schematic…
