Máy tính nhúng OK3562-C Single Board Computer SBC dựa trên Rockchip RK3562/RK3562J Forlinx
Khoảng giá: từ 4.005.000 ₫ đến 4.395.000 ₫
Mã sản phẩm: SP25083038
Datasheet:
Xem Datasheet
OK3562J-C Single Board Computer Based on Rockchip RK3562J Processor
Product series: 3562-C
Featuring a SoM + carrier board split design and utilizing 3 x 80-pin board-to-board connectors, it effortlessly exposes all processor function pins, optimizing them for various functionalities. Simplify your design process while empowering seamless secondary development. Elevate your projects with the FET3562J-C and unlock limitless possibilities for innovation!

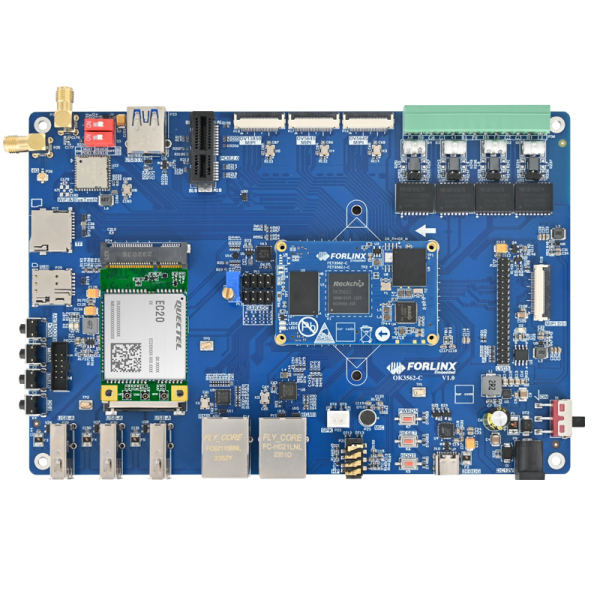

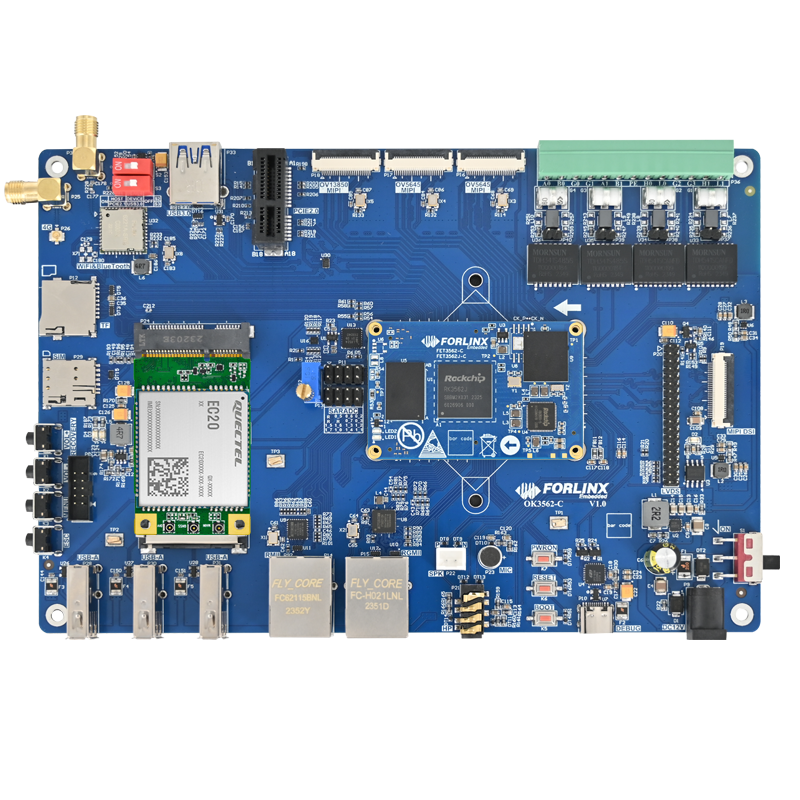

OK3562J-C Development Board
Intelligent Engine in the Age of Intelligent Industry
RK3562J is a high-performance, low-power application processor tailored by Rockchip for industrial automation and consumer electronics.
It features 4 x ARM Cortex-A53 high-performance cores, an embedded 3D GPU ensuring full compatibility with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1.
It integrates a specialized 2D hardware engine for enhanced display performance and seamless operation, alongside H.265 HD codec support for resolutions up to 4K.
Cost-effective SoM
Rich Bus Interfaces for More Diverse Industrial Applications
Rich industrial interfaces: 2 x Gigabit Ethernet (1 x RGMII, 1 x RMII), 2 x CAN (CAN2.0B), 10 x UART (up to 4Mbps),
2 x USB (incl. USB3.0), 1 x PCIe (5Gbps), and 1 LVDS (VESA/JEIDA LVDS). Perfect for diverse industrial applications.
Strict Quality Standards for More Reliable Industrial Products
The product undergoes rigorous testing at Forlinx Embedded Laboratory, including temperature, thermal shock, EMC, drop, and salt spray tests, ensuring stability.
Each unit undergoes 24-hour aging testing and AOI inspection before leaving the factory, ensuring reliability. With a 10-15 year life-cycle, it assures continuous supply.
Supercharge Your AI Applications with 1TOPS Computing Power NPU
RK3562 processor with a built-in 1TOPS AI NPU! Powering your AI applications with seamless mixed operations in INT4/INT8/INT16/FP16 formats.
Compatible with TensorFlow, MXNet, PyTorch, Caffe, and more, it offers effortless network model conversions and expands your AI possibilities.
Get ready to elevate your projects with Rockchip’s RK3562 processor—where performance meets versatility for the future of industrial automation and consumer electronics.
1080P Hardcoding + 4K HD Decoding
Seamlessly supporting H.264, H.265, and VP9 codecs, along with a premium JPEG encoder and decoder, it’s your gateway to high-definition content.
With compatibility across LVDS, MIPI DSI, and RGB interfaces, meet all your display needs effortlessly.
Continuously Updated User Profile
Wide Range of Industry Applications
Supercharge your innovations with the versatile FET3562J-C SoM! From industrial automation to consumer electronics, smart healthcare, power, new energy, and communications.
With Forlinx’s robust technical support services, accelerate your product’s time-to-market and seize the lead in your industry.
▊ Rockchip RK3562J SoM/SBC Video
Forlinx Launched FET3562J-C System on Module powered by the Rockchip RK3562J processor
▊ Hardware Features
| FET3562-C/FET3562J-C System on Module Basic Features | ||
|---|---|---|
| Processor | Rockchip RK3562J
ARM: 4×Cortex-A53@1.8GHz NPU: 1TOPS INT8, supports INT4/INT8/INT16/FP16 |
Rockchip RK3562
ARM: 4×Cortex-A53@2.0GHz NPU: 1TOPS INT8, supports INT4/INT8/INT16/FP16 |
| GPU: Mali-G52-2EE，supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.0 and 1.1
VPU: Hard encode: H.264，1920×1080@60fps Hard decode: H.265、VP9，4096×2304@30fps；H.264，1920×1080@60fps |
||
| RAM | 1GB/2GB LPDDR4 | |
| ROM | 8GB/16GB eMMC | |
| Power input | DC 5V | |
| Operating temp | -40℃~+85℃ | 0℃~+70℃ |
| Package | Board-to-board connector(3*80-pin, 0.5mm pitch, combined height 2.0mm) | |
| OS version | Linux5.10.198、Android | |
| Dimensions | 36mm x 56mm | |
| Flashing | USB OTG
TF Card |
|
| FET3562-C/FET3562J-C System on Module Functional Parameters | ||||
|---|---|---|---|---|
| Interface | QTY | Spec. | ||
| MIPI DSI | ≤1 | Supports 1x MIPI DSI TX, 4 lanes, up to 2048×1080@60Hz | Multiplexed & alternative | Can support 1 display out at most |
| LVDS | ≤1 | Supported form: VESA/JEIDA LVDS, up to 800×1280@60Hz | ||
| RGB | ≤1 | RGB888, up to 2048×1080@60Hz | ||
| MIPI CSI | 4 | Two ports including MIPI_CSI_RX0 and MIPI_CSI_RX1 are available;
A single port supports 4-lane with each lane up to 2.5Gbps; A single port can be split to 2x 2-lane |
Can support up to 4 CSI input together | |
| Audio | / | Built-in codec, sampling rate up to 48KHz~192KHz: single channel Speaker, class-D, 1.3W;
Stereo phone output, 32)hm, 2 single-end MIC |
||
| SAI | ≤3 | SAI0~SAI2, supports I2S/PCM/TDM, 8bits~32bits，sampling rate up to 192kHz;
SAI0 is occupied by SoM, circuited to SoM built-in Codec |
||
| PDM | ≤1 | Up to 8 channels, sampling rate up to 192KHz, host-receiving mode | ||
| SPDIF | ≤1 | Supports 2x 16-bit audio data stored in one 32-bit wide location;
Supports bi-phase format stereo audio data output; Supports 16/20/24-bit audio data transmission in linear PCM mode; Supports non-linear PCM transmission. |
||
| SD Card | 1 | Compatible with SDIO3.0, 4 bits data width | ||
| SDIO | ≤1 | Compatible with SDIO3.0, 4 bits data width | ||
| Ethernet | ≤2 | Supports 1x RGMII(10/100/1000Mbps auto-negotiable) and 1x RMII(10/ 100Mbps auto-negotiable) | ||
| USB2.0 | 1 | USB2.0 Host, up to 480MHz | ||
| USB3.0 | ≤1 | Supports USB3.0 host/ slave mode, compatible with USB2.0 | USB3.0 and PCIe2.1 are multiplexed, when working with PCIe2.1, USB2.0 in USB3.0 is available | |
| PCIe2.1 | ≤1 | Can only used as RC mode, only available for single-channel, 5Gbps | ||
| UART (1) | ≤10 | UART0~UART9，support 5/6/7/8bits serial data transferring or receiving, supports flow control(exclude UART0), up to 4Mbps | ||
| CAN | ≤2 | CAN2.0B, 1Mbps | ||
| SPI | ≤3 | Supports host/ slave mode | ||
| I2C (2) | ≤5 | I2C1~I2C5, support 7bits mode and 10bits mode, standard mode with 100Kbit/s and HS mode with 400Kbit/s | ||
| PWM | ≤16 | Supports 16 on-chip PWMs with interrupt operation, embedded 32-bit timer/counter, supports capture mode, supports continuous mode or one-shot mode | ||
| ADC (3) | ≤16 | 2x SARADC, each one contains 8-channel single-ended input, 10-bit, sampling rate up to 1MS/s | ||
| GPIO | ≤79 | Maximum supported pins, multiplexed. | ||
Note(1): UART0 is a debug port, it’s not suggested to be used as other functions;
Note(2): 6 I2C are available, I2C0 is occupied by SoM, it’s circuited to PMIC, not available on carrier board, there are 5x I2C at most are available;
Note(3): SARADC0_BOOT and SARADC0_IN1 are relevant with system booting, please do not use them for generic ADC purposes.
▊ OK3562J-C Carrier Board
 |
 |
| OK3562-C/OK3562J-C Single Board Computer Features | |||
|---|---|---|---|
| Peripheral interfaces | QTY | Spec. | |
| MIPI DSI | 1 | Supports 4 lanes output with capacitive TP, supports backlight brightness adjustment | Multiplexed and alternative |
| LVDS | 1 | 4-lanes LVDS with capacitive TP, supports backlight brightness adjustment | |
| MIPI-CSI | 3 | FPC connector, 4lanes+2lanes+2lanes | |
| Audio | / | Mono speaker, class-D, 1.3W; stereo earphone output, 32Ohm ; earphone recording+ on-board MIC recording | |
| WiFi | 1 | A single antenna available for 2.4G&5GHz
Wi-Fi Dual-band 1×1 802.11ac+Bluetooth 4.2 |
|
| BT | 1 | ||
| Ethernet | 2 | 2x RJ45, one Gigabit Ethernet and one Fast Ethernet | |
| USB2.0 | 3 | Pinned out by USB hub, only available for host mode | |
| USB3.0 | 1 | Supports host/ slave mode switchable | |
| PCIe | 1 | PCIe2.1, only available for RC mode, can only support Mono, 5Gbps | |
| CAN | 2 | CAN2.0B, with galvanic isolation | |
| SPI | 1 | box header | |
| 4G | 1 | 4G module with mini PCIe slot, contains USB2.0 signal | |
| TF Card | 1 | Up to SDR104 | |
| PWM | 1 | backlight control | |
| ADC | 13 | Pin headers, can be connected to a sliding rheostat to collect the voltage | |
| KEY ADC | 4 | One SARADC for 4 keys | |
| RTC | 1 | CR2032 | |
| USER GPIO | 1 | Key input + LED output | |
| RS485 | 2 | with galvanic isolation | UART9 is for both debug and RS485, it can be controlled by a switch |
| UART Debug | 2 | Integrated in one Type-C connector, can be connected to PC for debug operation | |
| JTAG Debug | 1 | ||
| Model | 1GB+8GB, 2GB+32GB |
|---|
